QY Insulation Overhead Crane

(QY Insulation Overhead Crane)

QY Insulation Overhead Crane
inquiry! Leave a Message!

INTRODUCTION

Insulation overhead crane is widely used in smelting workshops of electrolytic nonferrous metal, aluminum and magnesium. This insulation overhead crane is constituted by box-type main girder, crane traveling mechanism, trolley and electrical parts.

To prevent the current passing through the lifting mechanism to the crane and threatening the operator's life, parts of the insulation overhead crane are protected by insulation treatment. Insulation overhead crane work level is heavy duty, so the main lifting is equipped with dual braking in order to ensure safe production.

inquiry! Leave a Message!

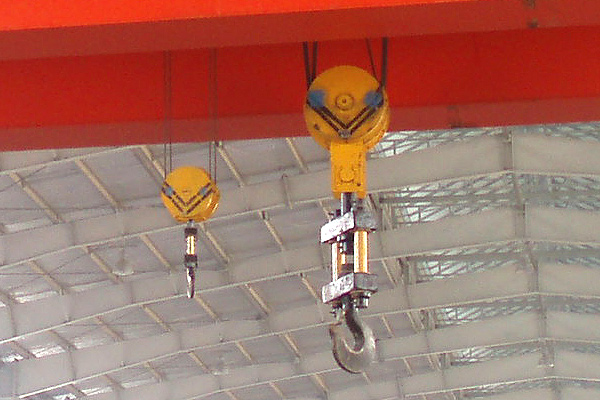

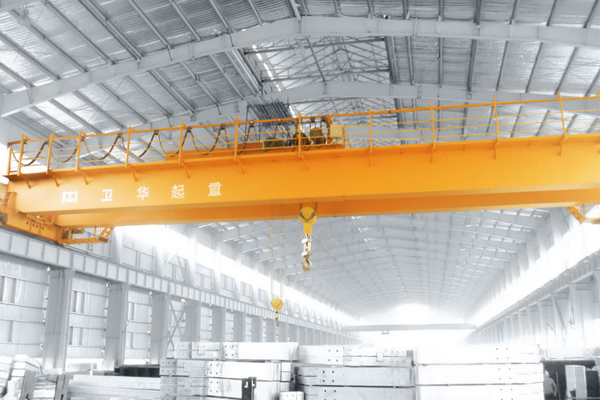

Detailed Photos

Specification

Lifting Capacity Span Lifting Height  Work Duty Main Lifting Speed Vice Lifting Speed Crane Traveling Speed Trolley TravelingSpeed Power Track
t m m   m/min m/min m/min m/min KW
5 10.5~22.5 16 A5/       A6 12.5/ 15.5 -- 90.7/ 115.6 37.2 22.8/      27.8 43kg/m
25.5~31.5 91.9/ 116.8 27.4/ 31.8
10 10.5~16.5 16 8.5/ 13.3     -- 90.7/ 115.6 43.8 27.5/ 35.5
19.5~22.5 91.9/ 116.8 32.1/ 39.5
25.5~31.5   84.7/    112.5 32.1/ 39.5
16/3.2 10.5~16.5 16/18 7.9/   13 14.5 84.7/ 87.6 44.6 51.1/  64.5 43kg/m  or  QU70
19.5~31.5 112.5/ 101.4 55.5/ 71.5
20/5 10.5~16.5 12/14 7.2/   9.7 12.7 84.7/   87.6 44.6 55.6/   69 43kg/m  or  QU70
19.5~31.5 112.5/ 101.4 60/   76
32/5 10.5~16.5 16/18 7.5/     9.5 12.7 87.6/  101.4 42.4 78.3/  96.3 QU70   or   90 Square Steel
19.5~22.5 74.2/    101.8 78.3/  96.3
25.5~31.5 74.6/  86.8 87.3/  96.3
50/10 10.5~16.5 12/16 5.9/   7.8 13.2 74.6/  86.8 38.5 115.5/   131.5 QU80  or  100 Square Steel
19.5~31.5 85.9/   87.3 115.5/   139.5
Power Supply 3 Phase 380V 50Hz

You can choose it or you tell us your working conditions and our engineers will recommend you the suitable according to your actual situation.
