rail mounted container gantry crane

(rail mounted container gantry crane)

inquiry! Leave a Message!


Rail mounted gantry cranes is the central product of Weihua Group, and it is also the key product of port crane. The following are our port crane products:

①   All port cranes

②   Rtg Rubber Tyred Gantry Cranes (RTG Crane)

③   MQ Portal Crane

④   FEM-DIN Double Girder Gantry Crane

⑤   32t Gantry Crane

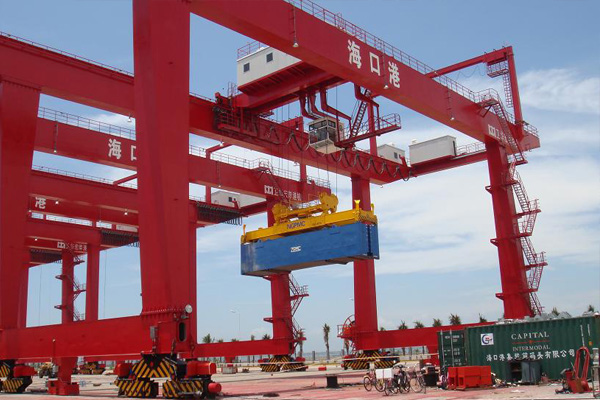

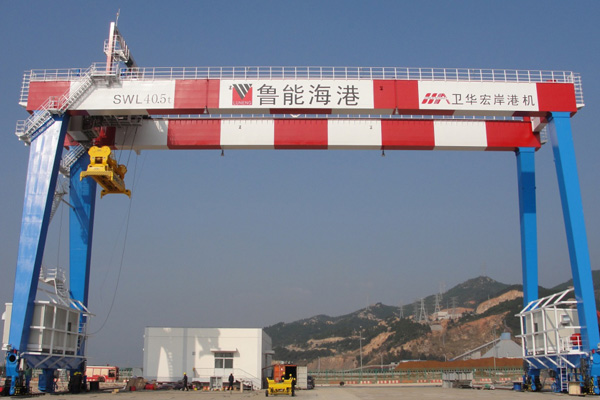

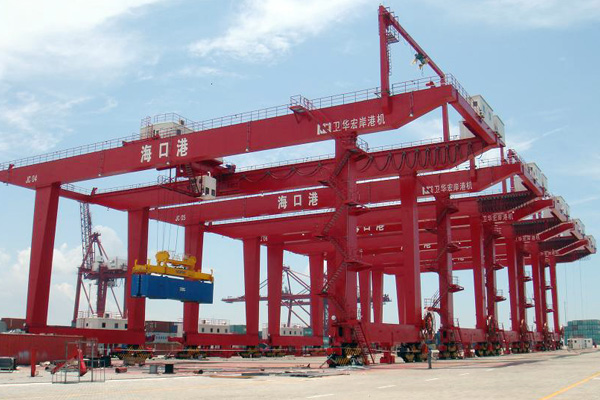

Rail mounted container gantry crane (RMG crane) is mainly used to load, unload, move and stack containers in railway transship fields and large container storage yards. It is constituted by main girder, rigid and flexible outriggers, trolley travel mechanism, lifting mechanism, crane travel mechanism, electric system and operation cab. This rail mounted container gantry crane can be 3 kinds based on operating type in storage yards: whose girders outreach at the direction of the single outrigger is called single cantilever crane and at the direction of the double outrigger is called double cantilever crane, and whose girders do not outreach is called non-cantilever crane. Users can choose different types depending on the different demands of yards, storage and transport ways of containers and vehicles (trucks or railway vehicles).

Rail mounted container gantry crane is our main product. After more than 30 years of development, our customers have spread all over the world and become a trusted manufacturer of rail mounted container gantry cranes. Our cranes include rail mounted container gantry crane, automated rail mounted gantry crane, rail mounted gantry, Rail Mounted Gantry Crane. The crane tonnage includes 15ton--800ton rail mounted container gantry crane and 15ton--800ton automated rail mounted gantry crane. Believe we will become the most trusted automated rail mounted gantry crane manufacturer and rail mounted container gantry crane crane factory in the world.

inquiry! Leave a Message!

Detailed Photos


Rated productivity priority t/h 600~2500
Lifting Capacity t 16, 32 , 55
Lifting Height m Above Rail 18~24 Below Rail 1
Proportion of material stack t/m³ 0.9~3.0
Max Outreach m 20~55
Track Gauge m 17, 30
Wheel Base m 12, 17
Lifting/Closing Speed m/min 100~150
Trolley Traveling Speed m/min 120~150
Pitching Time min 5
Crane Traveling Speed m/min 20
Max Wheel Load KN 200
Power Supply 10KV, 50Hz, 3Phase

You can choose it or you tell us your working conditions and our engineers will recommend you the suitable according to your actual situation.
