coil handling crane

(coil handling crane)

INTRODUCTION

Equipment introduction:

Coil handling cranes are mainly used for transfer and palletizing of steel coil products in steel mills.

Weihua steel coil handling crane has an intelligent handling system for steel coil warehouse. On the basis of the traditional handling system, it uses information technology, network technology and sensor technology to add management layer, control layer and basic layer to the handling system to realize lifting and handling. The intelligent and unmanned comprehensive management system of the warehouse area can realize unattended warehouse management, active scanning and identification of vehicles, intelligent identification and handling of steel coils, and real-time visualization of inventory program control.

Features:

① Visual identification system:

Accurate positioning of vehicle information and steel coil scanning and identification to realize intelligent unmanned automatic loading and unloading vehicles and safety protection of operating areas

② Anti-sway technology:

Automatic storage, smooth and efficient handling process

③ Data cloud platform:

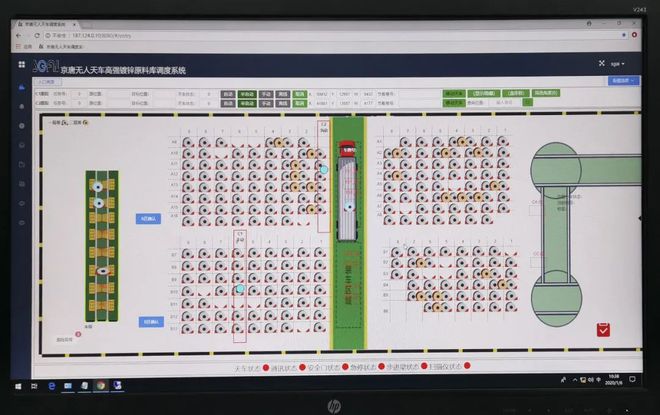

Visual warehouse management scheduling system + warehouse data management system + intelligent production line scheduling system + equipment status monitoring system, which can be connected to all intelligent warehouse management systems

Product advantages:

① Safe and stable, fast and stable, good balance;

② Intelligent, anti-swing, target positioning, convenient operation;

③ The working speed can be as high as 150 m/min, accurate and fast;

④ It can be replaced with other various types of spreaders to flexibly achieve a variety of application purposes;

⑤ Programmable Logic Controller (PLC) for controlling and monitoring the crane;

⑥ The crane can be controlled by radio remote control or in the engine room;

⑦ The electronic control core is matched with international big brands;

⑧ According to needs, manual, semi-automatic and fully automatic configuration options can be selected;

⑨ Can provide remote service guidance to quickly solve various problems;

⑩ Energy saving and environmental protection, convenient maintenance and high cost performance.

Product Specifications:

Coil handling cranes can be customized according to different environments and operational needs.

The basic specification range of Weihua products:

Lifting weight: 2t~100t

Span: 17m~39m

Lifting height: 5m~23m

Working level: A6~A7

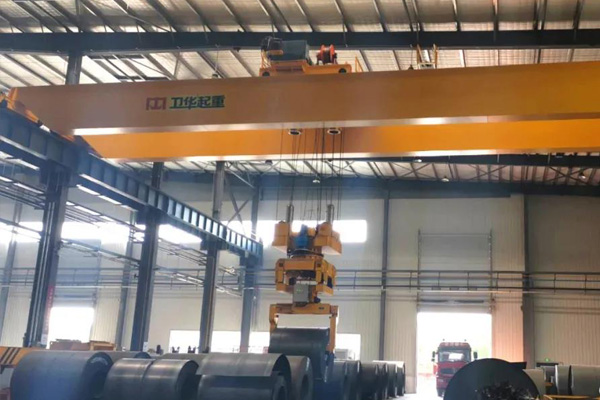

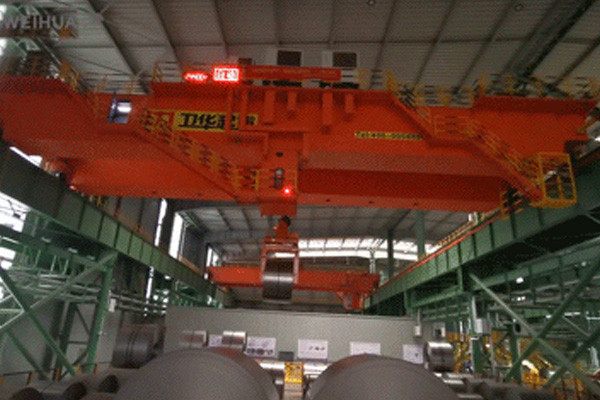

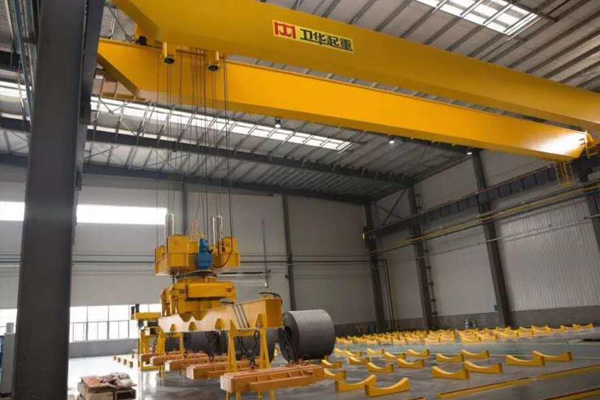

Detailed Photos

Main Features of Weihua automated intelligent steel coil handling crane

1. This crane can be equipped with a variety of lifting devices like coil grab( C-hook) and magnets depending on the material to be handled, the slewing function can be provided.
2. The crane can be controlled with a radio remote controller or in a cabin. Manual, semi-automated and fully-automated functions can be provided and the control mode can be switched freely.

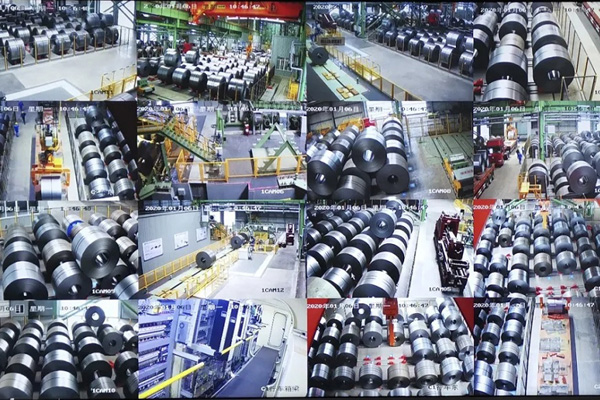

3. Visual Recognition System. The designed visual recognition system with functions of scanning and recognition of vehicle information and steel coils, precise positioning and realization of intelligent unmanned automatic loading and unloading trucks and safety protection in the working area.
4. Anti-sway System. Ground infrared equipment is interconnected with the crane to control the swing, the handling process is smooth and efficient.
5. Data Cloud Platform. The platform including visual warehouse management scheduling system, warehousing data management system, intelligent production line scheduling system and equipment condition monitoring system, all can be connected to all intelligent warehouse management systems.

Specification

Technical Specifications

Lifting Capacity		t	16+16
Span		m	26.5
Lifting Height		m	7
Work Duty			A7
Speed	Lifting	m/min	1.2~12
	Crane Traveling		6.2~62
	Trolley Traveling		20.6
Power		KW	315
Max Wheel Load		KN	295
Recommand Track			QU100
Power Supply			3 Phase A.C.50Hz 380V
