QD hook bridge crane

(QD hook bridge crane)

QD hook bridge crane

Leave a Message!

INTRODUCTION

Model QD Overhead Crane with hook is widely used in workshops, freight yards, docks, etc. for material handling. QD type hook Bridge Crane is mainly composed of bridge frame, crane traveling mechanism, trolley and electrical equipment. Its working level is A5-A6, and the ambient working temperature is -20 ℃ -40 ℃. This product control can be ground control and air control (cabin).

Leave a Message!

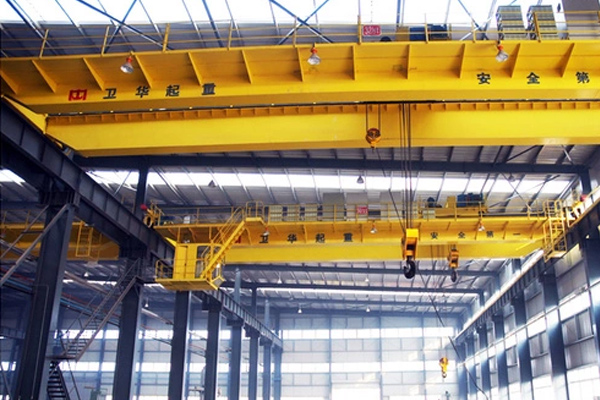

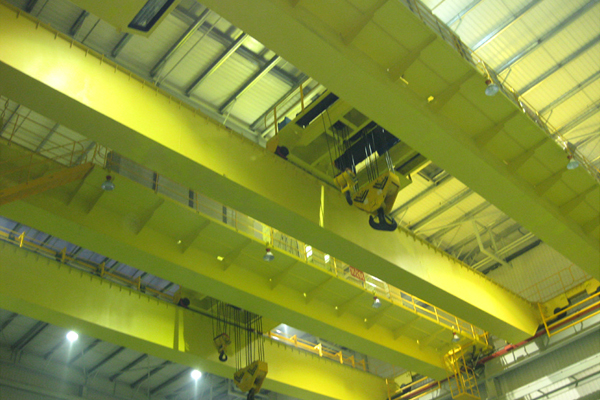

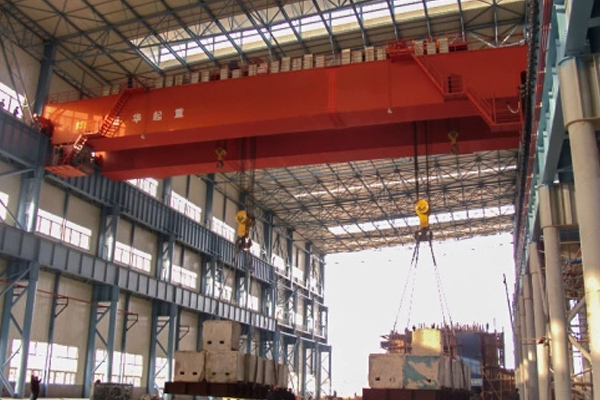

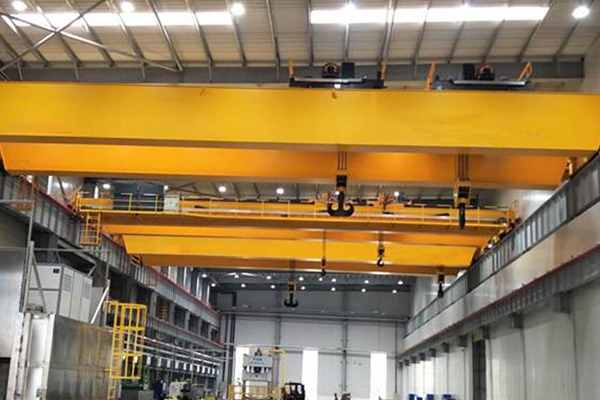

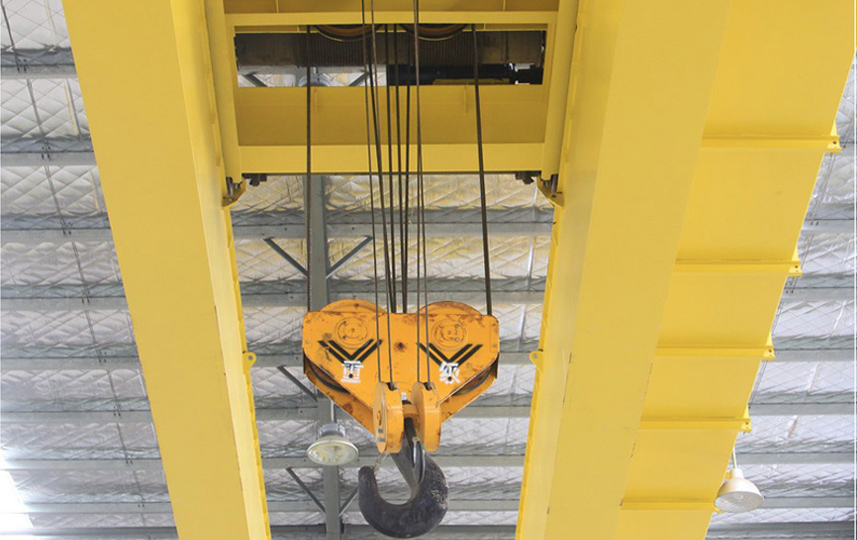

Detailed Photos

Features For QD hook bridge crane

1. Model QD overhead crane with hook is mainly used in various indoor workshops. According to different utilization levels and load conditions, it is divided into two working levels: A5 and A6.

2. The entrance of the cab can be 3 ways: side entrance, end entrance and top entrance.

3. The driver's cab can be installed on the left or right.

4. The crane power supply is from the safety conductor bar or angle steel, which can be on the opposite side of the driver's cab or on the same side of the driver's cab.

5. The operation of the crane is completed in the driver's cabin.

Specification

Lifting Capacity	t	5	10	16	20	32
Span		10.5m~31.5m, and customizable
Lifting Height	m	6m~24m, and customizable
Lifting Speed	m/min	8 8/0.8	7 7/0.7	3.5 0.35/3.5	3.3 0.33/3.3	3.3 0.33/3.3

Trolley Traveling Speed	m/min	20	20	20	20	20

Crane Traveling Speed	m/min	30	30	30	30	30

Work Duty		A4
Power Supply		380V, 50Hz
Europ Standard Electric Hoist Double Girder Overhead Crane Techinical Specifications


Lifting Capacity	t	5	10	16	20	32	50
Span		10.5m~31.5m, and customizable
Lifting Height	m	6m~24m, and customizable
Lifting Speed	m/min	0.8/5	0.8/5	0.66/4	0.53/3.4	0.8/3.3	0.53/3.2

Trolley Traveling Speed	m/min	2~20	2~20	2~20	2~20	2~20	2~20

Crane Traveling Speed	m/min	3~30	3~30	3~30	3~30	3~30	3~30

Work Duty		A5
Power Supply		380V, 50Hz

You can choose it or you tell us your working conditions and our engineers will recommend you the suitable according to your actual situation.
