Scraper-type Circular Stockyard Reclaimer

(Scraper-type Circular Stockyard Reclaimer)

INTRODUCTION

Scraper-type circular stockyard reclaimer is a pre-equalization equipment that adopt continuous synthetic stacking and whole section materials methods to reclaim and stacking. It's mostly used to stacking bulk materials such as limestone, which is useful in construction, coal, metallurgy, electricity, port industries. It’s applicable for indoor or hypaethral area where the bulk materials need to be homogenize, store, transfer. Scraper-type circular stockyard reclaimer is capable of blending material piling and blending material reclaiming simultaneously or respectively.

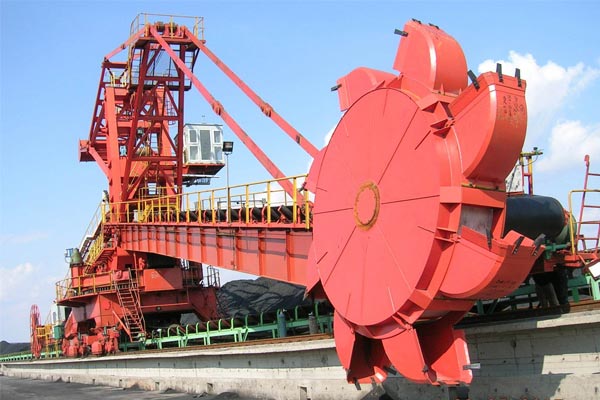

Detailed Photos

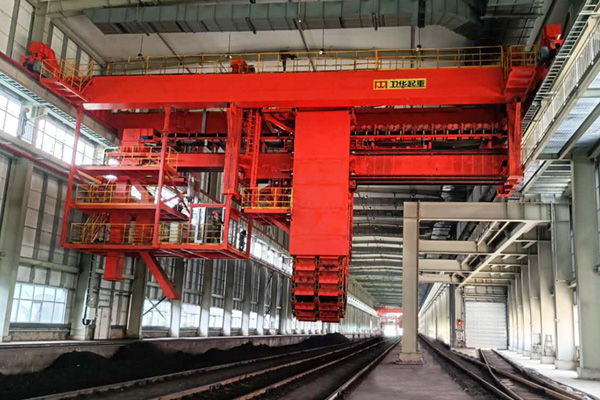

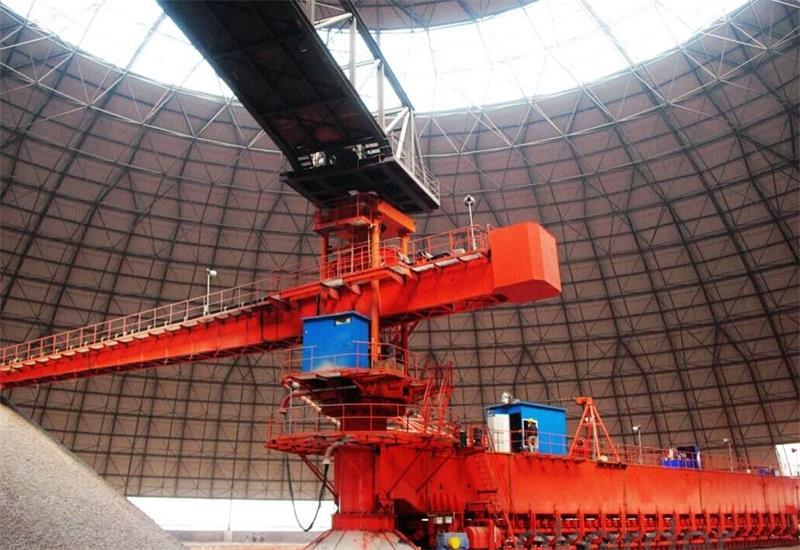

Scraper-type circular stockyard reclaimer has three type: cantilever(Top pile side）, gate type and bridge type.

According to operational environment, scraper-type circular stockyard reclaimer is divided into 2 types: Indoors and hypaethral inclined. The stockyard diameter ranges from Φ60~Φ120meters.

Scraper-type circular stockyard reclaimer has good equalization effect, large stockyard capacity, small occupy area, highly-automatic and good environmental protection performance features.

Specification

Model		Unit	YG/. 60	YG/. 78	YG/. 80	YG/. 90	YG/. 95	YG/. 100	YG/. 110	YG/. 120

Production capacity	Stack	t/h	500~800		500~1000	500~1200	800~1500	1000~2000	1000~2500	1500~3000
	Reclaim	t/h	40~200	100~500	40~400	250~500	400~700	800~1200	1000~1200	1200~1500
Material characteristics	Applicable materials		Coal,coke,limestone,bauxite,iron ore,pellet ore,clay and other bulk materials

	Density	t/m³	0.5~2.5
	Granularity	mm	0~300
Stockyard diameter		m	60	78	80	90	95	100	110	120
Storage Capacity		m³	15000	30000	34000	52000	60000	75000	86000	95000
Traveling speed	Work	m/min	0.2~2 stepless speed regulating
	Dispatching vehicle	m/min	10

Slewing speed of reclaiming		m/min	0.01

Stack	Rotary	m/min	0.01
	Variable amplitude		0.3~0.6

Maximum wheel load		KN	250/300
Recommended steel track			P50/Q80/Q100
Power supply mode			Cable drum/safety sliding contact line
Contact mode			Cable drum/safety sliding contact line/wireless
Control mode			PLC program control, manual and single action
