Crane Aviation Plug

(Crane Aviation Plug)

Crane Aviation Plug
inquiry! Leave a Message!


Product: Crane Aviation Plug, Connector

Model: HDC-TG21s-HE016-AG (top access port)

HDC-TS21s-HE016-AG (side access port)

Core: 4, 6, 10, 16, 24, 32, 48 Cores

Current: 16A

Voltage: 500V

Protection: IP65

Shell Material: Cast aluminum alloy

16 Core Plug Size: 115mm*80mm

16 Core Plug Port caliber: 13-18mm

Connector material: Silver-plated copper

Aviation plug is a kind of connector which is electromechanical components that connect electrical circuits. The main function of the aviation plug is to connect the electrical sources that you want to turn off through the plug-in function, and then transmit the signal or current between them, and realize the exchange and sharing of resources through transmission. Crane control panel also adopt aviation plug to arrange cable and connect motor.


1. Easy to repair

If an electronic component fails, an aviation plug can quickly replace the failed component.

2. Improve the production process

The use of aviation plugs simplifies the assembly process of electronic products and also simplifies the mass production process.

3. Easy to upgrade

With the advancement of technology, new components can be replaced when aviation plugs are installed, and old components can be replaced with new and more complete components.

4. Improve design flexibility

The use of aviation plugs allows engineers to have greater flexibility when designing and integrating new products and when composing systems with components. Because the structure of aviation plugs is becoming more and more diversified, new structures and application fields continue to appear.

inquiry! Leave a Message!

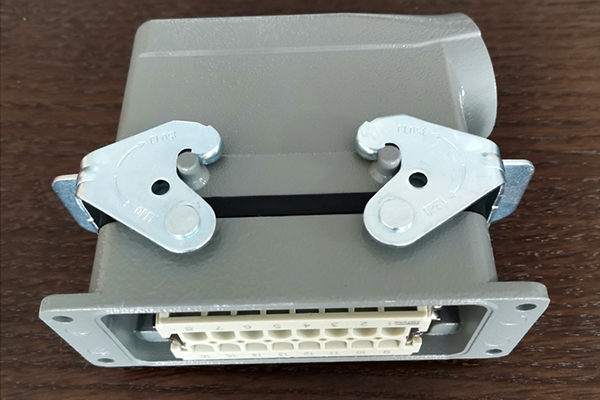

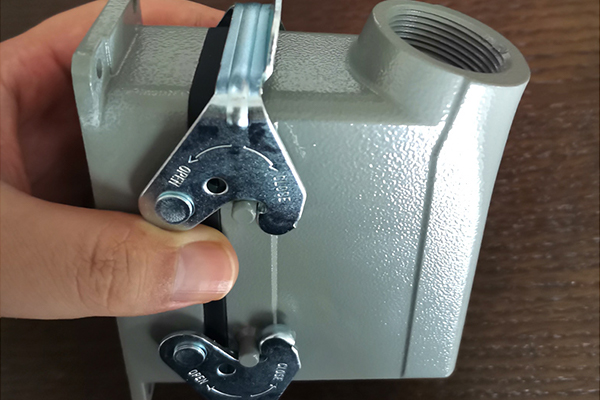

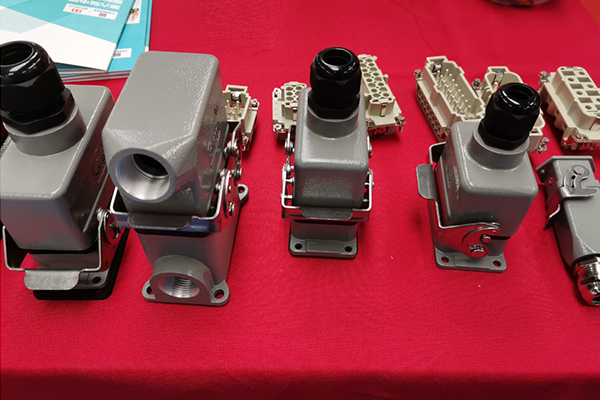

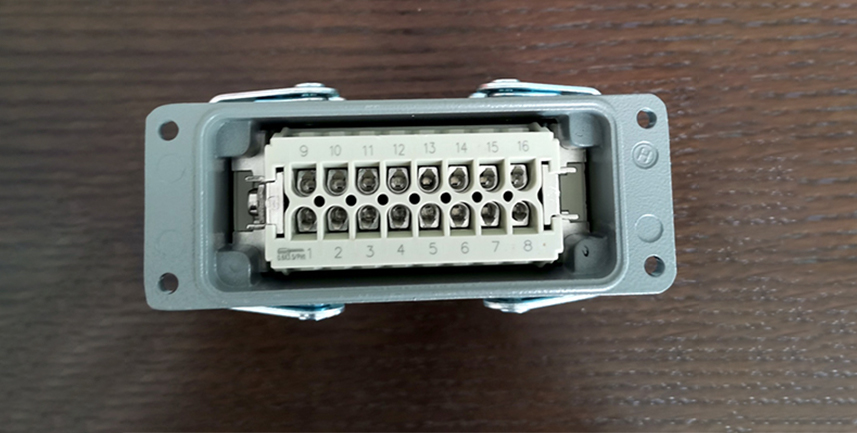

Detailed Photos

You can choose it or you tell us your working conditions and our engineers will recommend you the suitable according to your actual situation.
