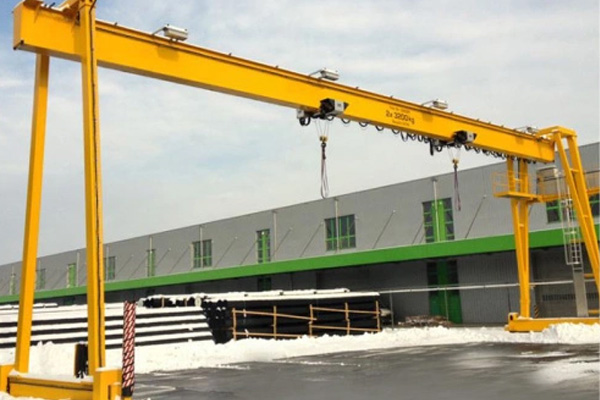

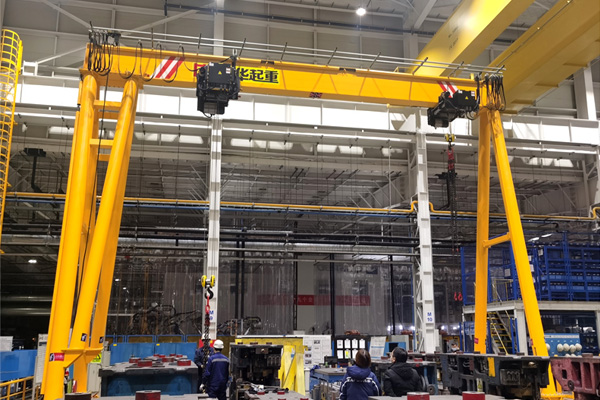

Gantry Crane Model MG

Features:

1. high working effiency;
2. smooth movement &comfortable operation;
3. convenient maintenance & aesthetic painting;
4. light deadweight, light wheel load and reliable performance;
5. customized: design and manufacture according to your request.

Mechanism:

1. High quality carbon steel Q235B and Q345B;
2. connected by high strength screws;
3. Welding seams are tested by X-ray and ultrasound;
4. Compact structure, small volume;
5. Compact reducer motor drive, step less control, hardened gears and safety disc brake;
6. Good operation performance, step less speed regulating and running smoothly;
7. Painting high quality epoxy zinc-rich primer, and the thickness of oil film is 140μm;

Electric System:

1. Control panel protection degree is IP54;
2. Reasonable components installation, convenient for check and maintenance;
Safety Protection Devices:
Overload limiter, limit switch, interlocking protection devices, buffer, track sweep plate, bus bar protection board, anti-collision device, main disconnecting switch, emergency stop system and motor overload protection.
