Movable Ship Loader

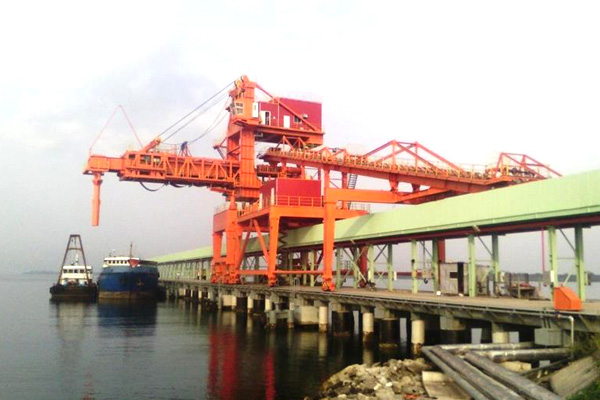

Detailed Photos

Features For Movable Ship Loader

1. The complete machine can be operated along with the wharf with favorable maneuverability, flexible operation mode and strong adaptability of ship type.

2. Considering that the cantilever crane can only make pitching and extension-retraction movement to cooperate with the traveling cart via its extension and retraction for the sake of changing the charging position of chute tube, it can save the slewing drive and bearing, as a result, the complete machine becomes more simple and portable.

3. The machine is inclined to apply herringbone structure, adopt the tubular profiles to serve as the main stress components, and reject the plate-girder welding structure, therefore, the plate shearing, welding and other procedures are reduced in the manufacturing process to reduce the manufacturing and processing difficulty and shorten the manufacturing period.

4. It applies the flexible chute tube to reduce the dust pollution during the ship loading.

The complete machine is intensively controlled by PLC, of which the main mechanisms apply the frequency control mode to make the mechanism realize stable operation without impact.

Specification

Equipment model			Unit	CSL 500	CSL 800	CSL 1200	CSL 1800	CSL 2600	CSL 3200	CSL 4000	CSL 4500
Production capacity		t/h		500	800	1200	1800	2600	3200	4000	4500
Material characteristics:	Applicable materials			Coal, coke, limestone, bauxite, iron ore, pellet ore, clay and other bulk materials.
	Density		t/m³	0.5-2.5
	Particle size		mm	0-300
Traveling speed	Work		m/min	10
	Dispatching vehicle			30
Cantilever crane pitching	Work		°	0～+16
	Non-working		°	70
	Speed		r/min	2/4/6/8
Telescopic speed of cantilever crane			r/min	6(cantilever crane angle0～+16)/3(cantilever crane angle0～+35)
Chute tube speed	Rotation		m/min	0～6
	Stretch			1
Conveyer	Belt speed		m/s	1.25-4
	Bandwidth		mm	1.25-4
Rail gauge:			m	650-2400
Maximum wheel load			KN	250-350
Recommended steel track				P50-Q80
Power supply mode				Cable drum/safety sliding contact line
Contact mode				Cable drum/safety sliding contact line/wireless
Control mode				PLC program control, manual and single action
