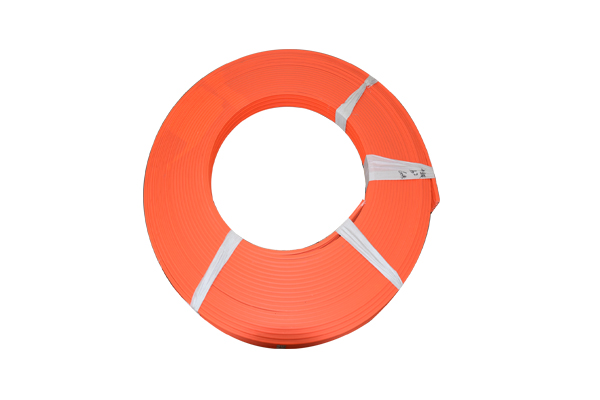

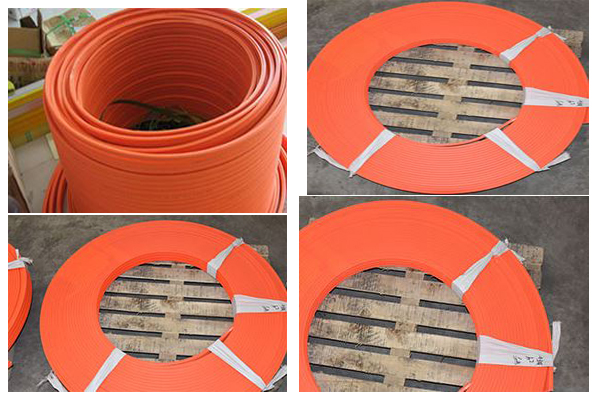

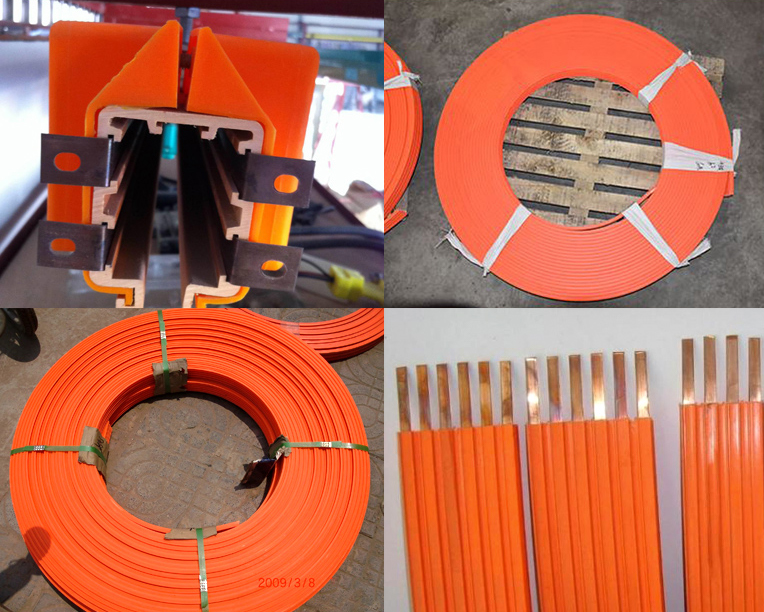

Seamless Slide Wire Conductor

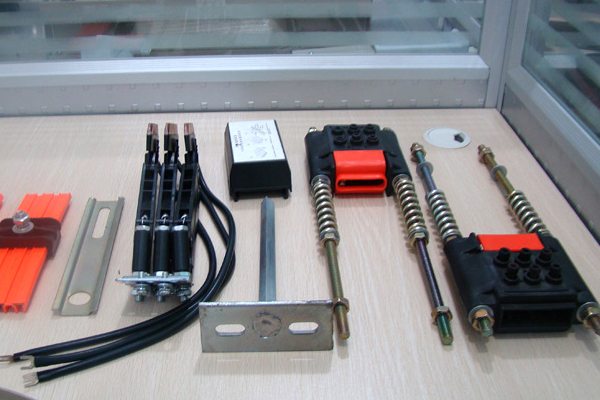

The seamless slide wire conductor is without any joints within length 1000m, which is available for 3P, 4P (50A, 80A, 100A, 120A, 140A) with load matching. Meanwhile 3P, 4P can be combined into the 6P or other level. Weihua provides complete seamless slide wire system including components such as hanger clamp, bended joints, Current Collector, towing bracket, end tensioner/feeding, towing arm, carbon brush, support bracket, etc.

The seamless conductor rail system has the features of quick and easy installation, economical and practical, stable operation, fast speed, less noise, flexible power supply, etc.

4P Slide Wire Data:

Rating: 4P, 660V, 50A-120A

Slide wire material: copper

Insulation cover/jacket: Rigid PVC within 75℃

Color: Orange (Eye-catching warning color)

3P Slide Wire Data:

Rating: 3P, 660V, 50A-120A

Slide wire material: copper

Insulation cover/jacket: Rigid PVC within 75℃

Features of Seamless Slide Wire:

1. Application scope: Seamless slide wire for overhead crane power supply.

2. Advanced technological product, non-interruption phenomenon, power supply through oxygen-free copper, good flow pressure rate, conductivity and contact property, convenient to transport and install, not easy to wear, easy replacement, long service life, safe and reliable, and low cost.
