Semi-gantry crane

(Semi-gantry crane)

INTRODUCTION

Electric hoist semi-gantry cranes operate in the form of wireless remote controls, wired ground controls and control room controls. The electric hoist semi-gantry crane is a general-purpose crane. It is mostly used in general machinery manufacturing, assembly workshops, warehouses and other places for handling and loading and unloading materials. It is often used in outdoor and open places. And it is used together with CD1, MD1 model electric hoists, which is a small and medium-sized gantry crane travelling on tracks.

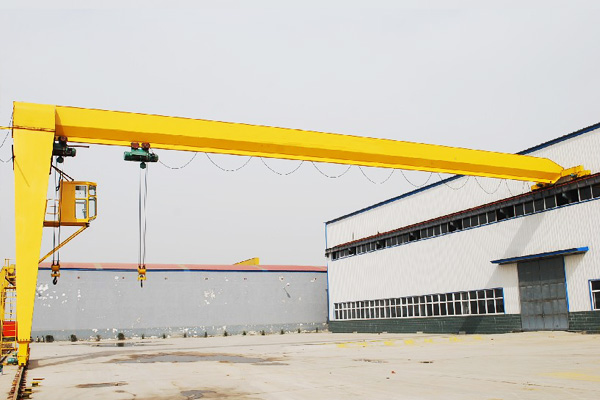

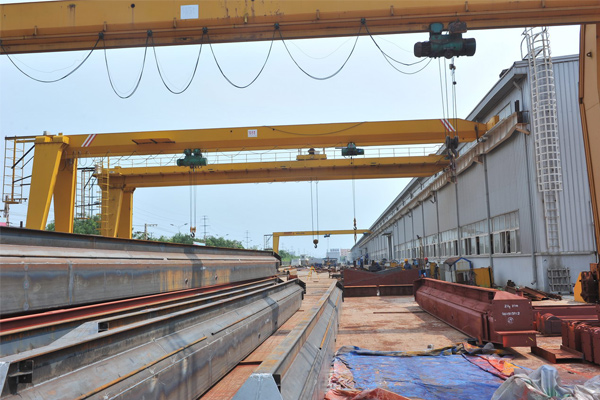

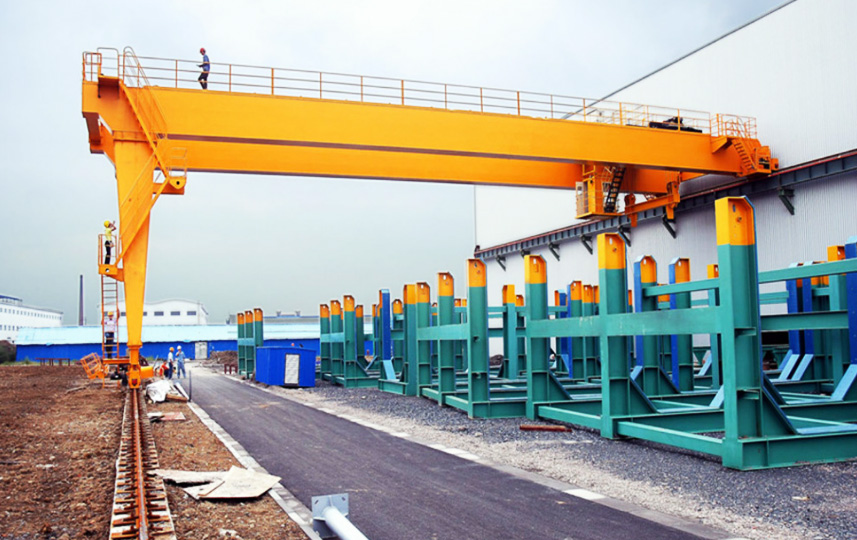

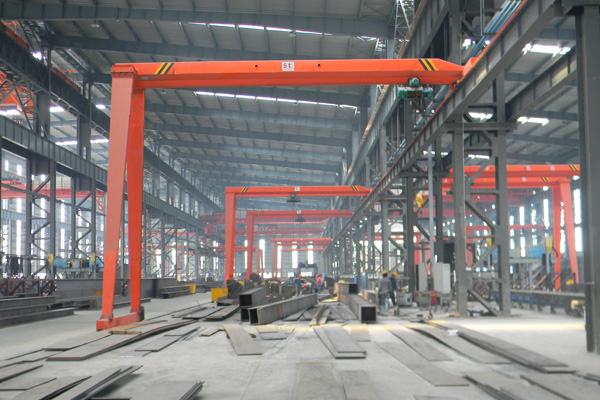

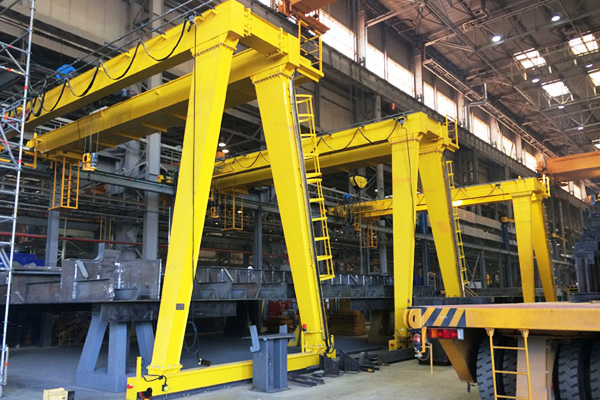

Detailed Photos

Features For Semi-gantry crane

1. Applicable working environment of this kind semi-gantry crane is -20 ℃ - +40 ℃.

2. Semi-gantry crane can be designed on the basis of plant construction requirements, one side of end beam is travelling on crane girder, the other side of end beam is travelling on the ground, it saves production space.

3. Manufacture crane should meet JB/T5663-2008 standard.

4. The welding seam can be handled on site as required, adopt standard E4303.

5. This crane applies as general service, normally used in handling and lifting materials of machine workshop. it has cable control, Remote control and cabin control.

6. Special gear for bottom beam can make larger inside working space of crane.

7. Multiple type based on mechanical feature:

BMH----single girder hoist semi-gantry crane, capacity 0.5-16t

BMHⅠ----single column type hoist semi-gantry crane, capacity 0.5-5t

BMHN-----European type semi-gantry crane. capacity 0.5-10t

Specification

Lifting capacity			t	10
span			m	5	11	14	17
Track height			m	6
Traveling mechanismg	Travelling Speed		m/min	20/30
	Motor	Ordinary	kW	ZDY(D)1,22-4/1.5*2
		Soft Start	kW	YDE90L-04(D)/1.5kW*2
	Reducer			LDA1, LDAC1			LDH, LDHC
	Wheel Diameter		mm	φ270			φ400
Electrical hoist	Type			CD1, MD1
	Lifting Speed		m/min	7 0.7/7
	Travelling Speed		m/min	20/30
	Motor	Lifting	kW	ZD151-4/13, ZDS1 2.2/13
		Travelling	kW	ZDY121-4/0.8*2
Working system				A4
Steel track recommended				P38
Power source				Three phase. AC 380V 50HZ
The Crane Weight			t	3815	4700	5550	6850
Max Wheel Load			KN	63.9	66.2	68.2	72.5
Basic Dimensions		H	mm	4185	4185	4185	4190
		H1		735	735	835	910
		H2		1670
		H3		1815	1815	1815	1815
		B		2600			2900
		B1		1800			1800
		B2		2000	2000	2000	2500
