Weihua Port Cranes Hot-selling Products in the First Quarter

Weihua Port Machinery signed 6 orders of 10 million yuan from a company in Liyang City in the first quarter

Up to now, orders have increased by 126% year-on-year, and at the same time, multiple project products have served customers on site

Continue to contribute to the construction of smart ports and the improvement of the overall efficiency of container transportation

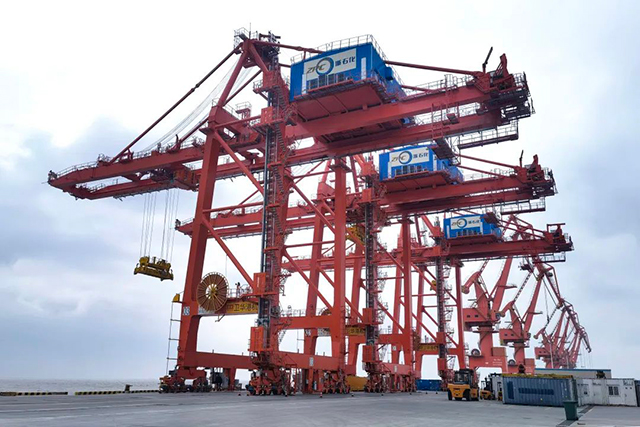

01 Serving Zhejiang Petrochemical Project-Shore Container Crane

The 6 quayside container cranes serving Zhejiang Petrochemical can carry loads for individual or combined actions of hoisting and trolley operation, as well as vertical and horizontal tilting and horizontal rotation of the spreader and pitching of the forearm beam.

It has the characteristics of large lifting load, small gauge, long reach, high speed, high work efficiency, energy saving and environmental protection.

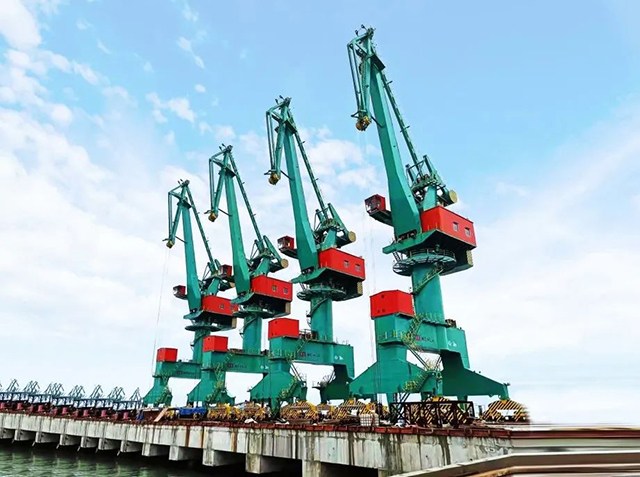

02 Export to Indonesia Special Terminal Project - Portal Crane

The portal cranes of the project include one MQ25t-32m and four MQ40t-38m, all of which adopt the structure of four-link combined boom and cylindrical gantry. All operating mechanisms adopt AC variable frequency speed regulation, and the whole machine adopts PLC control system, full variable frequency stepless speed regulation and fault monitoring system.

The driver's cab of the portal crane of this project is equipped with an intelligent status monitoring control panel, which can realize dynamic monitoring of the running status, provide dynamic change graphic display, and also have functions such as safety information alarm, lubrication and maintenance management assistance, etc.

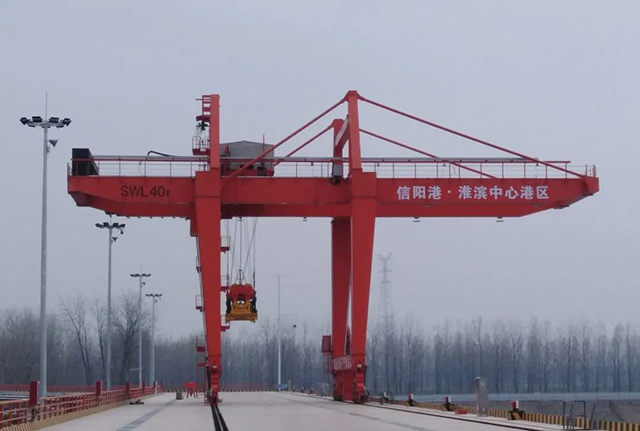

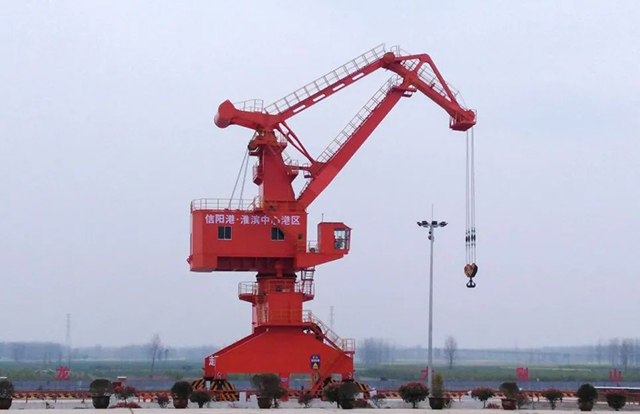

03 Serving Xinyang Port Huaibin Central Port - Port Crane Complete Equipment

Serving 7 types of products such as quayside container cranes, arc ship loaders and rail-mounted container cranes produced by Weihua in Huaibin Center of Xinyang Port. Handling, transshipment and storage business needs.

The complete set of cranes in Weihua Port has helped the largest comprehensive single port in Henan Province - Huaibin Central Port of Xinyang Port to officially start sailing, which will promote the seamless connection between inland shipping in Henan Province and the "Maritime Silk Road".

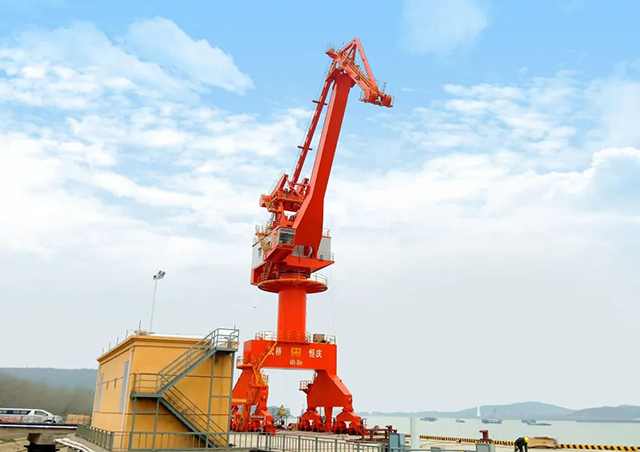

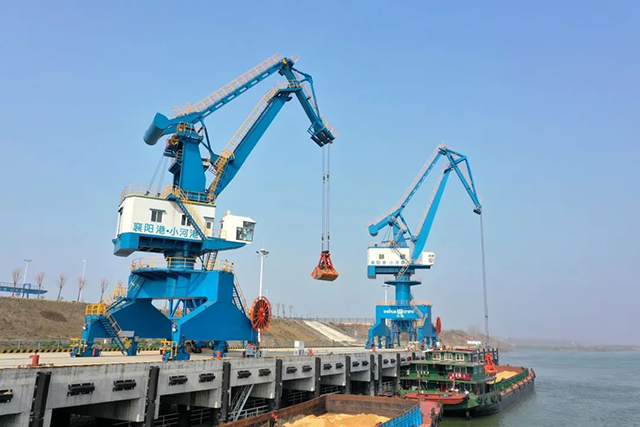

04 Serving Xiangyang Port Xiaohe Port - Portal Crane

The portal crane adopts the single-boom structure, which has the characteristics of large lifting capacity, fast speed, high efficiency, light weight and compact structure.

It is mainly composed of a hoisting mechanism, a luffing mechanism, a slewing mechanism, and a cart running mechanism. The four working mechanisms of hoisting, luffing, rotating and running can act independently or in combination. Equipped with various safety protection devices and alarm devices installed by the crane to ensure that the crane can carry out loading and unloading operations safely and reliably.

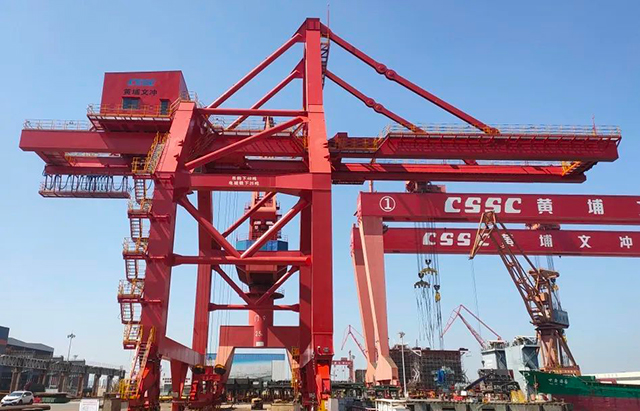

05 Serving CSSC-40t loading and unloading overhead crane

The 40t loading and unloading overhead crane has a hoisting mechanism, a trolley running mechanism, a cart traveling mechanism, and the like. The electric drive of each mechanism is all-digital AC frequency conversion speed regulation and PLC control, which can realize stepless speed regulation, and its hoisting mechanism also has the function of constant power speed regulation.

A management system with data collection, analysis, status monitoring, and fault diagnosis functions, equipped with systems such as cart collision avoidance, video voice, and safety protection, to ensure the safe operation of the automation part of the equipment.



06 Serving Wuqiao Heavy Industry - Four-bar Linkage Portal Crane

The drive mode of the four-bar linkage gantry crane adopts a full digital AC variable frequency speed regulation system. A management system with functions of data collection, analysis, condition monitoring and fault diagnosis, and can display the main parameters and operating status of the crane in the electrical room, driver's cab and control center.

The product is equipped with anti-collision, video and voice, safety protection and other systems to ensure the safe operation of the automation part of the equipment.

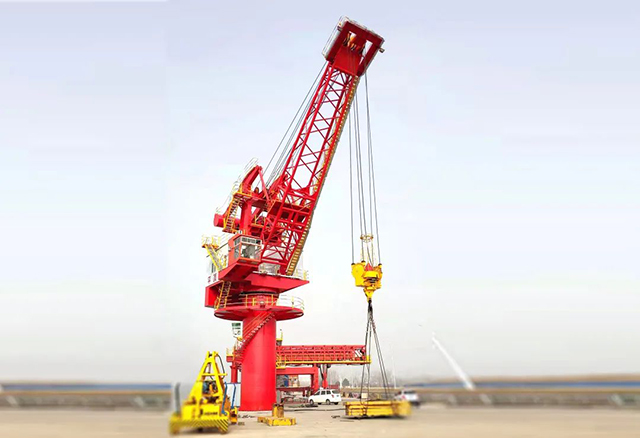

07 Serving a company in Pingdingshan - 45 ton stationary crane

The fixed crane adopts the single boom rack and rack luffing structure, and has the distinctive features of large lifting capacity, fast lifting speed, high efficiency, light weight and compact structure.

The electric drive of each mechanism is all-digital AC frequency conversion speed regulation and PLC control, which can realize stepless speed regulation, and its hoisting mechanism also has the function of constant power speed regulation. The spreader rotation has a follow-up function to ensure that the crane rotation is synchronized with the spreader rotation. The equipment has a management system with functions of data collection, analysis, status monitoring, and fault diagnosis.



As a new force of Weihua in the field of port machinery, Weihua port cranes have always insisted on focusing on the most cutting-edge technologies in the world, and continuously improved their research and development capabilities and manufacturing capabilities.
